EMOTRON EMOSMART SERIES HMI

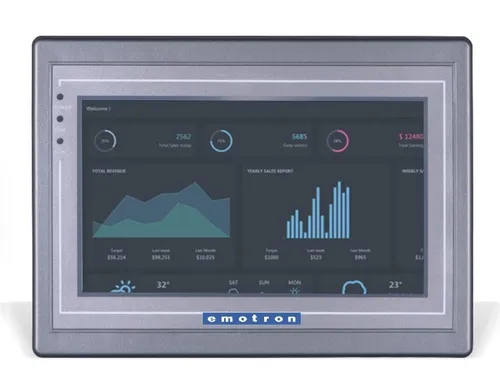

HMI007 Human Machine Interface
Price
₹ 7,800 / Unit
Brand
Emotron
Model Name/Number
HMI007
Display Size
7 inch
Display Resolution
800 x 480
Flash Memory
128 MB
RAM
128M DDR3
Processor
Cortex A8 600MHz
Programming Port
USB Client
Power Supply
DC 24V
Dimension
201 x 146.6 x 36.5 mm
Brightness
300cd/cm2
Colors
16000K
Power Consumption
<10W
Operating Temperature
-10 to 60 Degree Celsius
- Emotron EmoSmart Series HMI is based on a modern, powerful and user-friendly design with high-quality display resolution, large memory and powerful configuration.
- It is designed to easily achieve human-machine interaction in various fields and industrial automation applications.
Features
- Higher computing performance with a high-speed processor.
- High resolution and high contrast with a reliable touch panel.
- Built-in stereo amplifying speaker provides efficient alarm notification.
Benefits
- Front panel has IP65 waterproof protection and the back panel is IP20.
- ABS Black/Gray enclosure provides greater vibration resistance and higher tolerance for ambient environments.
- Allows users to assign authority levels and register passwords for different user groups for enhanced security control.
Peripheral Interfaces
- Supports SD Card.
- Supports USB Host 2.0 Ports and USB Client 2.0 Ports.
- Built-in communication ports: RS232 / 422 / 485.
- Built-in Ethernet port available in 7-inch model as optional.
EMOTRON EMOSMART SERIES HMI

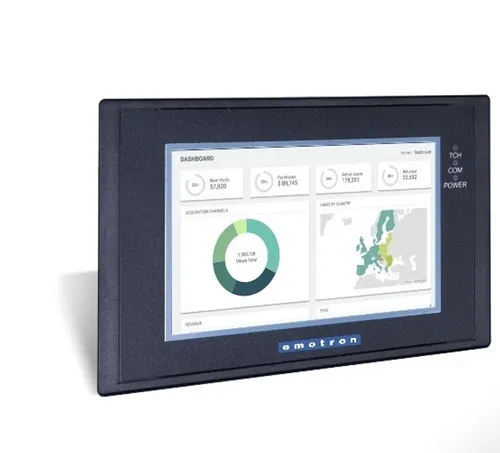

HMIWE07 Human Machine Interface
Price
₹ 7,600 / Unit
Brand
Emotron
Model Name/Number
HMIWE07
Display Size
7 inch
Display Resolution
800 x 480
Flash Memory
128 MB
RAM
64M DDRAM
Processor
32-bit 300MHz RISC
Programming Port
USB Client
Power Supply
DC 24 V
Dimension
201 x 146 x 36 mm
Storage Temperature
-20 to +70 Degree Celsius
Humidity
10-85% RH
Cooling
Air Cooling
Power Consumption
5 W
- Emotron EmoSmart Series HMI is based on a modern, powerful and user-friendly design with high-quality display resolution, large memory and powerful configuration.
- It is designed to easily achieve human-machine interaction in various fields and industrial automation applications.
Features
- Higher computing performance with a high-speed processor.
- High resolution and high contrast with a reliable touch panel.
- Built-in stereo amplifying speaker provides efficient alarm notification.
Benefits
- Front panel has IP65 waterproof protection and the back panel is IP20.
- ABS Black/Gray enclosure provides greater vibration resistance and higher tolerance for ambient environments.
- Allows users to assign authority levels and register passwords for different user groups for enhanced security control.
Peripheral Interfaces
- Supports SD Card.
- Supports USB Host 2.0 Ports and USB Client 2.0 Ports.
- Built-in communication ports: RS232 / 422 / 485.
- Built-in Ethernet port available in 7-inch model as optional.
EMOTRON EMOSMART SERIES HMI
EMOSMART Human Machine Interface
Price
₹ 8,000 / Unit
Brand
Emotron
Model Name/Number
HMI004
Display Size
4.3 inch
Resolution
480 x 272
Processor
32-bit 300MHz RISC
Programming Port
Micro USB
Power Supply
DC 24 V
Dimension
142 x 86 x 30.3 mm
COM 1
RS422 / 485
COM 2
RS232
Humidity
10-85 % RH
Power Consumption
5 W
Memory
128 MB
Brightness
450cd/cm2
Storage Temperature
-20 to +70 Degree Celsius
- Emotron EmoSmart Series HMI is based on a modern, powerful and user-friendly design with high-quality display resolution, large memory and powerful configuration.
- It easily achieves human-machine interaction in various fields and industrial automation applications.
Features
- Higher computing performance with a high-speed processor.
- High resolution and high contrast with a reliable touch panel.
- Built-in stereo amplifying speaker provides efficient alarm notification.
Benefits
- Mechanism design breakthrough with IP65 waterproof protection on the front panel and IP20 protection on the back panel.
- ABS Black/Gray enclosure provides greater vibration resistance and higher tolerance for ambient environments.
- Allows users to assign authority levels and register passwords to set permissions for different user groups for enhanced security control.
Peripheral Interfaces
- Supports SD Card.
- Supports USB Host 2.0 Ports and USB Client 2.0 Ports.
- Built-in communication ports: RS232 / 422 / 485.
- Built-in Ethernet port available in 7-inch models as an optional feature.
